Holophane, a leader in lighting solutions since 1921, has implemented AMETEK Land’s new Near Infrared Borescope (NIR-B) Glass, an enhanced thermal imager, at its plant in France and now is reaping major benefits by accurately measuring temperature within its glass melt tank.

For nearly a century, Holophane has produced and transformed glass for technical applications, specifically glass optical components for automotive lighting. It has set itself apart by its excellent understanding of both pressed glass and optics and its ability to combine these two skills is unique.

Borescope Helps Improve Furnace Operations For Glass Producer Holophane

Borescope Helps Improve Furnace Operations For Glass Producer Holophane

When it rebuilt the 33m², 85-ton, end-fired regenerative furnace in 2014 at its Les Andelys plant in Northern France, Holophane looked to replace its existing visual camera system with innovative thermal imaging technology to provide continuous “on line” temperature measurement. AMETEK Land recommended its Near Infrared Borescope (NIR-B) Glass with an auto retraction system, which can operate effectively at the extremely high ambient temperatures adjacent to the glass melt tank, while providing real-time, high-quality thermal images and temperature data from inside the tank.

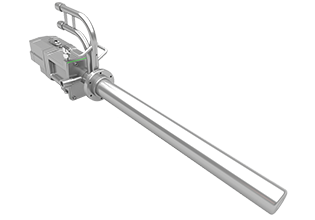

Developed specifically to operate in the demanding environment of a glass melt furnace, the NIR-B Glass is designed to withstand the high ambient temperatures. It features an integral cooling system plus a specially designed air purge that keeps the 90° lens clear of contaminants to provide 24/7 data to the plant. Even at very high furnace temperatures, it delivers high-definition (656 x 494 pixel) thermal images to generate highly accurate traceable temperature measurements in the 1000 to 1800 °C (1832 to 3272 °F) range. This advanced technical solution is suitable for float, container, borosilicate, fibre glass and speciality glass furnaces that also made it an ideal solution for Holophane’s Les Andelys plant requirements.

Borescope Helps Improve Furnace Operations For Glass Producer Holophane

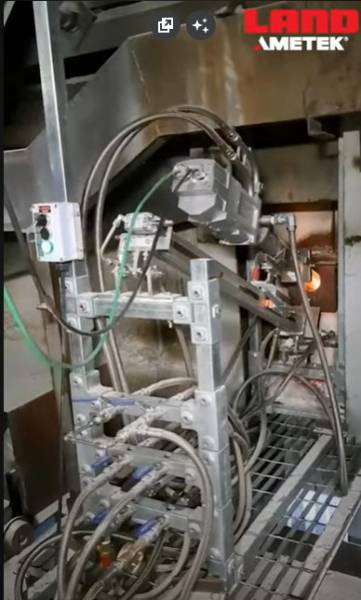

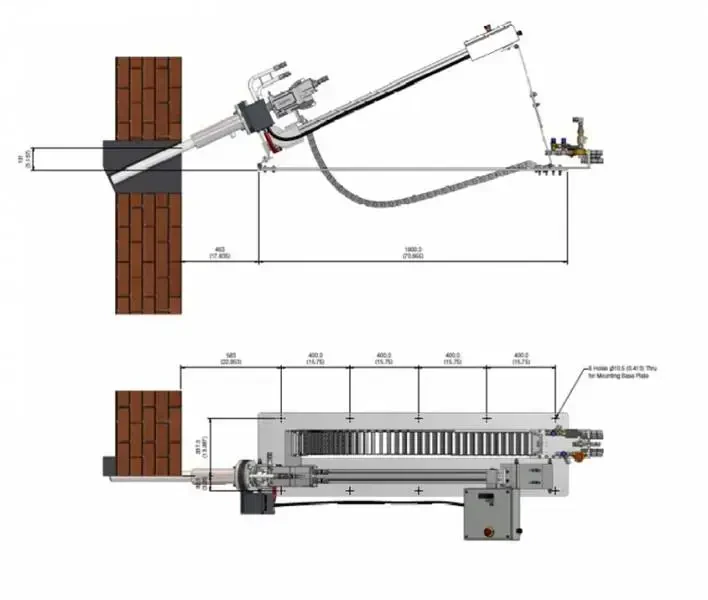

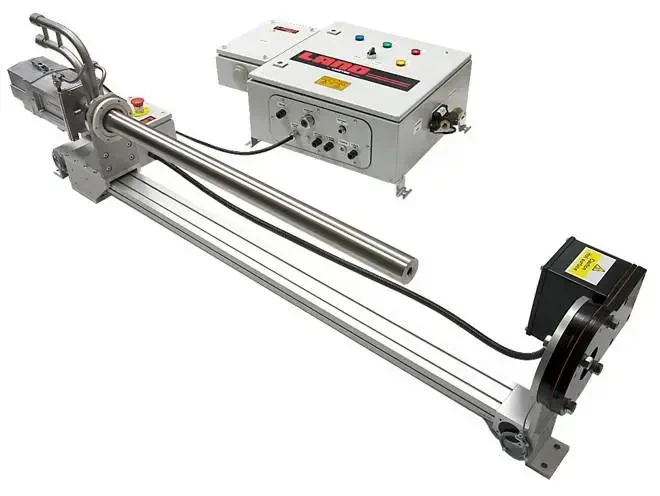

At the Les Andelys plant, the NIR-B Glass was installed above the throat of the tank in a location with a very high ambient temperature of over 60 °C. For this installation, AMETEK Land recommended a heat shield below the borescope to reduce the heat coming directly from the throat. The solution also incorporated an auto-retract mechanism that provides the instrument with additional protection with instantaneous automatic retraction from the furnace wall in the event of failure of air purge, water cooling, and mains power or if there is an over-temperature condition detected at the borescope tip.

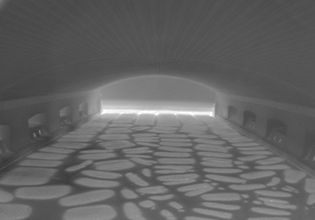

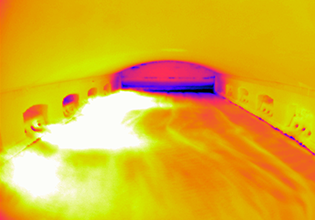

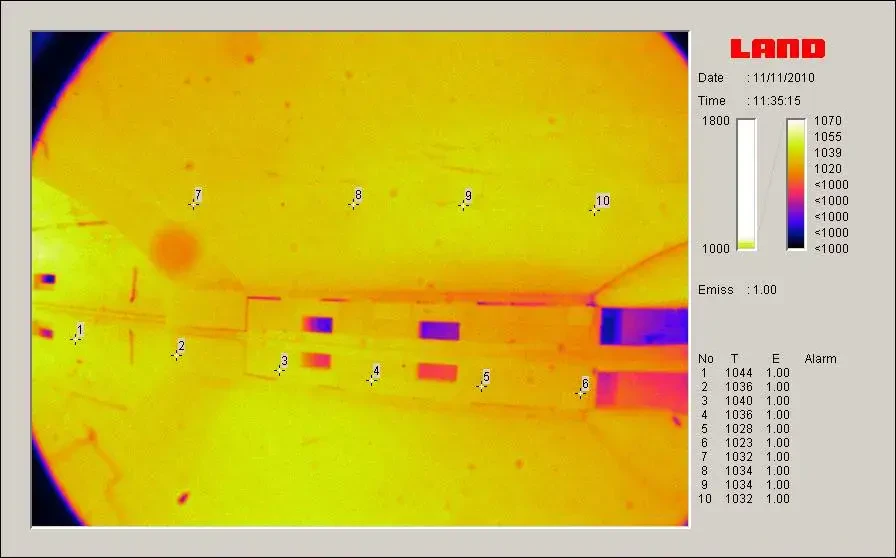

Among the borescope’s major benefits to Holophane is its ability to provide a 90-degree wide angle thermal image with clear “visual” definition, combined with a continuous temperature readout. This helps the operators maintain furnace control and therefore optimise productivity. In a revolutionary development, the NIR-B

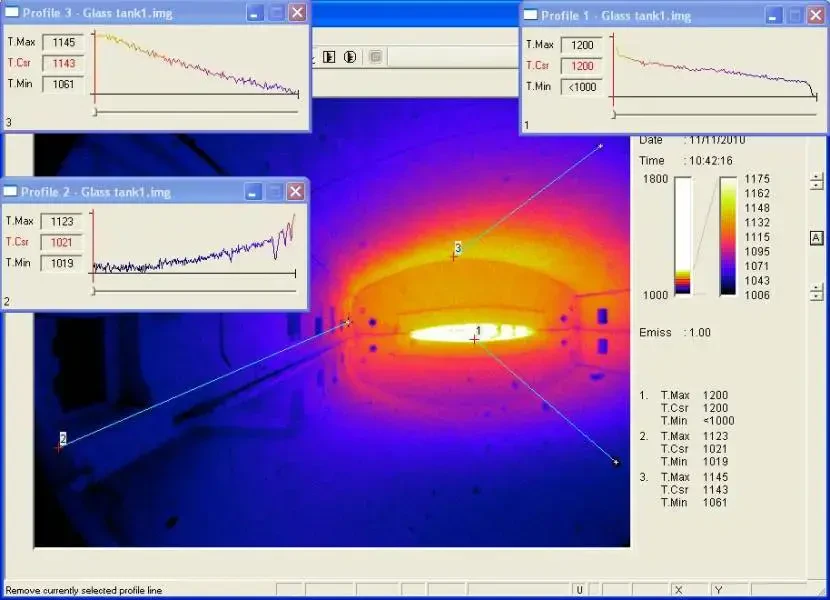

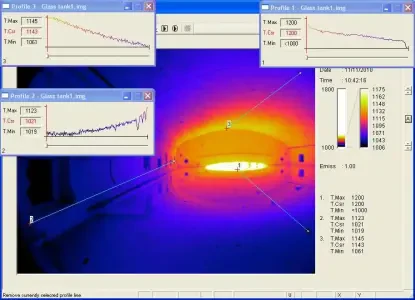

Glass has been used to continuously monitor the optical profile (temperature profile) along the furnace walls to optimise the location of “hotspots” and to monitor areas of the crown for high temperature with alarms to prevent overheating. AMETEK Land’s Cyclops optical pyrometer, which has been the industry standard for single optical pyrometer temperature measurements in furnaces for decades, was used as the basis for the technology incorporated into the NIR-B Glass and hence the reliability of the temperature measurement.
With over 324,000 available temperature measurement points in the field of view, the borescope also can be used to monitor for drift in crown roof thermocouples by assigning emissivity values for a specific or range of data points.

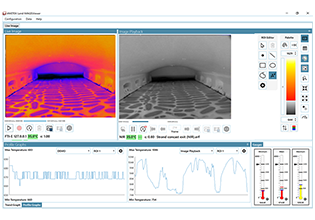

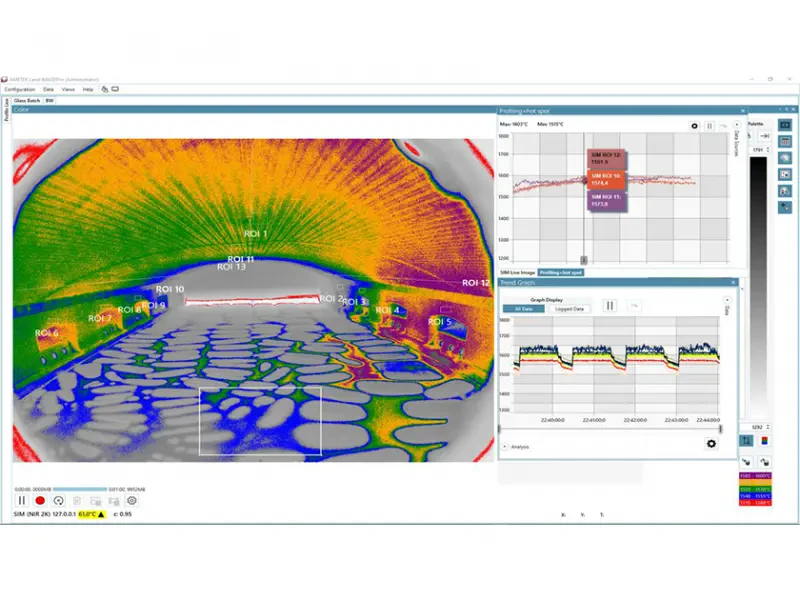

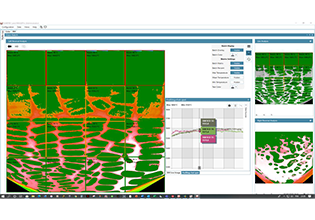

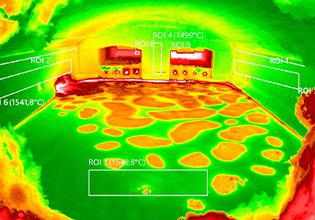

The clear, wide angle thermal image provided by the NIR-B Glass has helped Holophane operators to monitor glass batch line and batch flow from the charging end up to the throat. With configurable outputs, it is possible to create an alarm if the batch crosses the desired melt line. By utilising an area function in the advanced LAND Image Processing Software (LIPS) Holophane also is able to monitor foam.

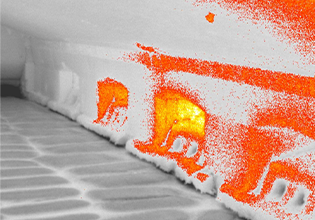

In addition, the NIR-B Glass alerts the operator to any air leakage or ratholes/cracks in the melt tank as well as corrosion areas near the chargers or burners. The instrument allows an operator the option to see the difference in temperature gradients when the burners are not operating correctly, which may be an indication that the burner needs to be cleaned, re-aligned or air-to-gas ratio adjusted.

Borescope Helps Improve Furnace Operations For Glass Producer Holophane

Emmanuel Declerck, Industrial Director at Holophane explains, “The borescope helps greatly to maintain the right quality flames with good turbulence and shape, therefore optimising the quality of our end products along with our energy usage. The images provided by the instrument are particularly important at the exit, near the throat, where temperature profiles are routinely monitored by operators.”

“We are confident that as a direct result of implementing AMETEK Land’s solution, we are achieving significant savings in energy usage,” adds Mr Declerck.

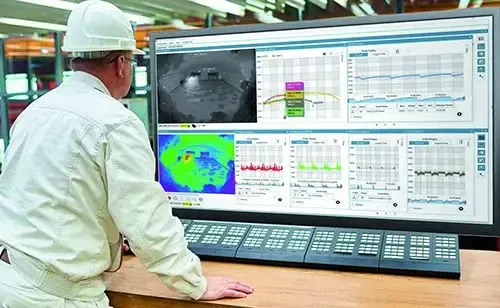

Combing crystal clear “video” images with continuous real-time temperature data, has allowed the NIR-B Glass to replace Holophane’s traditional CCTV cameras and provide a full optical profile every reversal.

The NIR-B Glass solution offers Holophane’s plant operators the ability to clearly “see” cold spots from air leaks in the structural refractory, making it easier to detect cracks and enable prompt repair. In addition, its operators can visualise flames to optimise the flame patterns and thermal efficiency and overlay thermal profiles across the crown and along the melt for more accurate batch line control, production throughput optimisation, and batch transit time recording.

KAMERA i BOROSKOP
Zakres pomiaru:	1000 ... 1800°C
Rozdzielczość pikseli:	1968 x 1476
Odpowiedź widmowa:	1 μm (środek)
Częstotliwość wyświetlania klatek:	15 fps (tryb pełnej klatki)
Detektor:	FPA - półprzewodnik
Optyka (HFOV x VFOV):	95° x 71°
Optyka (IFOV):	0,84 mrad (2K: 95° x 71°) 2,53 mrad
Zakres ostrości:	1 m do nieskończoności
Średnica sondy:	Ø61 mm / Ø2,4 cala
Długość sondy:	305, 610 lub 915 mm (12”, 24” lub 36”)
Armatura:	Do wyboru kołnierz 3” ANSI 150 RF lub kołnierz PN16 DN80 z rurą stojącą 12”
Okno ochronne:	Szafir
Precyzja:	1% odczytu (K)
Powtarzalność:	1 K
Wymiary:	254 x 560 x 810 mm* (* lub 1120 lub 1420 mm);
Moc znamionowa:	24 V DC, 4 W
Waga:	15 kg (dla wersji 24”)
Ocena środowiskowa:	IP65 / NEMA 4
DOSTAWA KAMERY
Znajomości:	Gbit Ethernet; Lokalny interfejs połączenia między kamerą a systemem przetwarzania obrazu
Usługa:	Woda, powietrze przyrządu, wejście zasilania, umieszczone z tyłu obudowy
ZASILACZ (PSU)
Składniki:	Zasilanie, komunikacja Ethernet (przełącznik), światłowodowe łącze danych (opcja)
FCB - ocena środowiskowa:	IP65 / NEMA 4
Rozmiar:	380 x 380 x 211 mm
Waga:	15 kg
Zatwierdzenie UL:	Wymieniony na liście UL508A i CSA-C22.2 Nr pliku E499440
PRZETWARZANIE OBRAZU

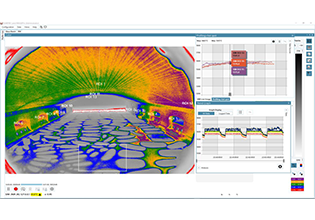

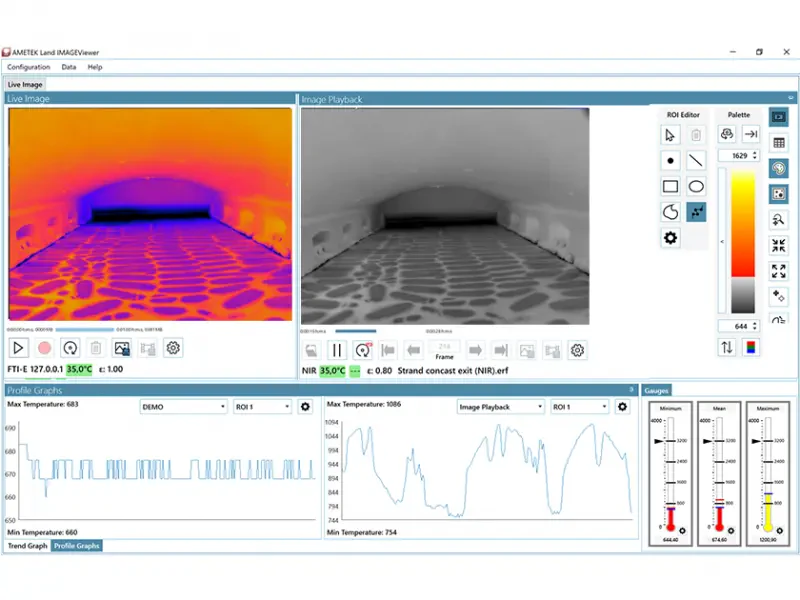

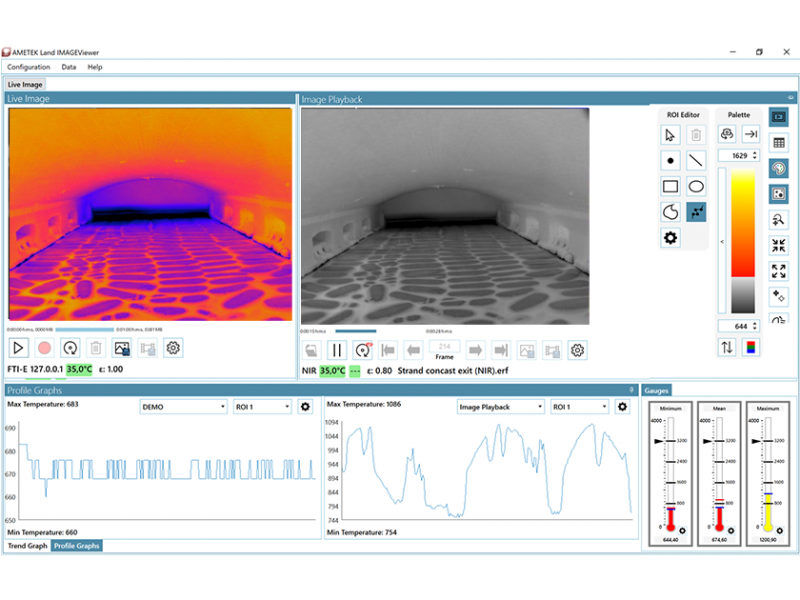

Oprogramowanie:	IMAGEPro-Glass Zaawansowane oprogramowanie do obróbki szkła
Stacja robocza:	Stacja robocza PC (opcja)
Interfejs:	Otwarty interfejs danych, Modbus TCP, moduł WE/WY do PLC (DSC /SCADA)
AKCESORIA
Akcesoria opcjonalne:	Zasilanie, kable, mocowanie i rurka chłodzona wodą / przedmuchana, oprogramowanie, stacja robocza, systemy automatycznego cofania
